Road network coverage was built in the following general steps.

• Obtain data from sources
• Convert data sets to ARC/INFO format
• Re-project data-sets to UTM, meters, Zone 10
• From available sources (BLM, DOT, and USFS-Willamette National Forest) build a combined coverage.
• Run identity function with hydrological units coverage to be able to identify each road segment by HUC.
• Produce meta-data.

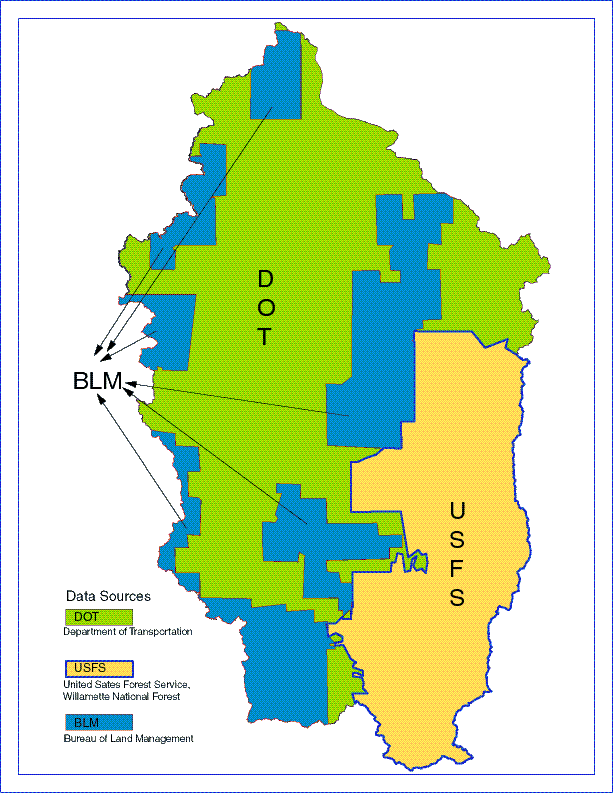

Figure 1: Polygon Boundaries of data Sources used to build Willamette Road Network


BLM Coverages

Layer name: blm024trb.e00

Contacts: Lisa Blackburn

Telephone: (503) 952-6276
Mail: Bureau of Land Management
Oregon State Office
ATTN: Lisa Blackburn
PO Box 2965
Portland, OR 97208
To Visit: Bureau of Land Management
Oregon State Office 7th Floor
1515 SW 5th Ave
Portland, OR 97201


We received a tape from a contractor with the BLM; the tape came with no meta-data.
The data-set consisted of a tar file (blm024e00.tar) containing ARC/INFO export files.
These Files were imported into ARC/INFO; appended and re-projected using a UTM,
zone 10 projection.

When imported the files had the form axxxxxtrb.e00 or axxxxxxrb.e00 (x indicating
coordinate locations of the coverages); xrb indicating that the coverages were
outside the boundaries of the BLM; trb indicating that the coverages were inside the
BLM boundaries. We used the data that fell under the jurisdiction of the BLM, the trb
set.



ODOT Coverages:

Layer name: dot97c

dot97c was built using data-sets downloaded from ODOT's ftp site:
ftp://ftp.odot.state.or.us/tdb/trandata/maps.
The sets were formatted in .LAM (Intergraph) format (i.e.BAKE1.LAM,BAKE2.LAM, etc).

Once the 13 counties intersecting the WRB had been downloaded; they were imported
into ARC/INFO using the ARC/INFO IGDSARC command.


National Forests Coverages
Willamette National Forest
Layer name: tran96.e00
Contacts: Rosanna Costello (541)344-2263
Metadata for this coverage was provided in analog form by Kate Kirsh (541)346-4870
in a draft document entitled: Mini Data Dictionary - Willamette National Forest; a
transcript of this document follows: GIS layer name: transportation; GIS layer file
name: tran96 ;GIS data type: line; date: june 26, 1996

Mt. Hood National Forest
Layer name: THMSMTH97.
Rich Haguestadt.

Umpqua National Forest
Layer name: CGROADS
Contact: Kate Kirsh (541)346-4870.
Coverages from DOT, BLM and USFS data overlap. In addition, the schema of their databases
have different columns rows and item definitions. Also, they were built for different purposes.

For RDNET, the road network that had the most linear features, was deemed to be the most
accurate. The portion that was deemed to be the most accurate was fitted with polygon
boundaries. These polygon boundaries were joined with the line coverage (road network of
each data source). This procedure generated geographically exclusive road coverages. One
polygon boundary for each road network of each source. All these polygons were then joined
to each other to form coverage with all attributes of the exclusive data-sets.

Note: only line-work is valid; attributes of individual coverages were not presserved.
